ART Electron

THE ELECTRON™ (ART-E1)

For dentists, oral surgeons and veterinarians alike, electrosurgery units have become a staple in the operatory for their fast cutting, ease of use, and track record of safe implementation. For minor incisions, excisions and drainings, The Electron™ from Bonart™ stands amongst its peers as one of the most widely-used electrosurgical devices in the Western world.

Utilizing monopolar radio waves – not heat – to cut tissue, The Electron™ eliminates the tissue scarring of the old cautery machines, and puts exacting precision at your fingers.
From the crystal clear LED readout highlighting each of the 10 power levels and 3 modes (Cut, Coag1 and Coag2), down to the Tungsten electrode set and hand piece, The Electron™ from Bonart™ is a tecnical marvel at a fraction of the price of it’s competitors.

SPECIFICATIONS

  • Maximum power output: 50W (@ 400 ohm load)
  • Power supply: 110V±5% ~50/60Hz 92VA or 220V±5% ~50/60Hz 92VA
  • Work frequency: 1.5~1.7MHz±5%
  • Dimension (cm): 23(L) x 22.5(W) x 8.5(H)
  • Hand piece cable length: 190 cm
  • Indifference plate cable length: 190 cm
  • Weight: 12lbs
Category:
  • Electron (ART E1) Main Unit
  • Power Cord
  • PP0031-002: Universal foot switch

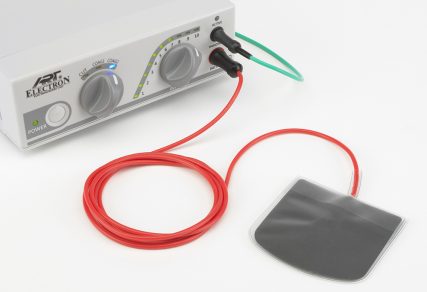

  • EU0004-002: Indifference/ Grounding plate
  • EU0003-032: E1 hand piece

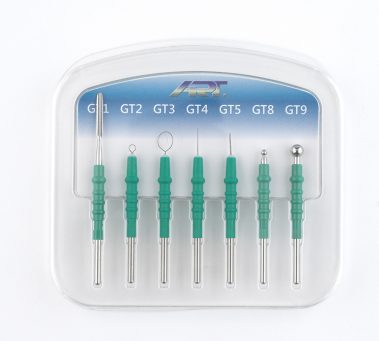

  • TE0002-002: Assorted green electrode set of 7 (includes the following electrodes):
    • TE0001-452: GT1 Blade Electrode

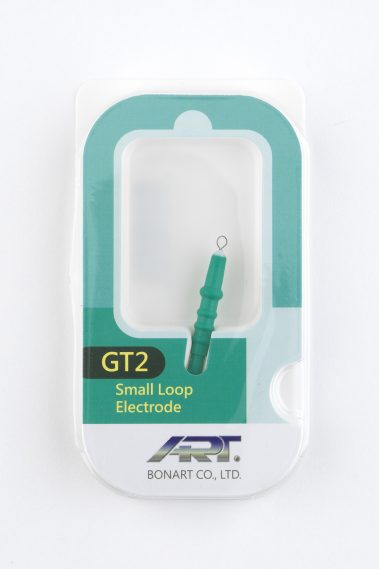

    • TE0001-462: GT2 Small Loop Electrode

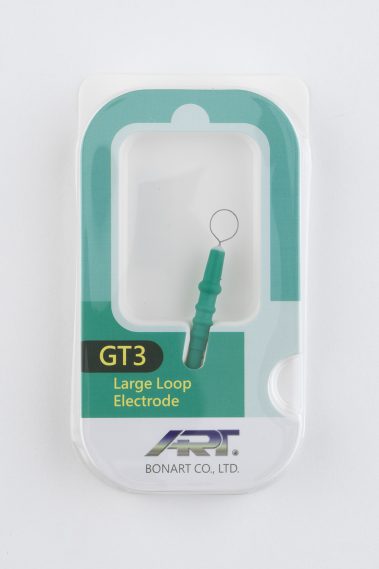

    • TE0001-472: GT3 Large Loop Electrode

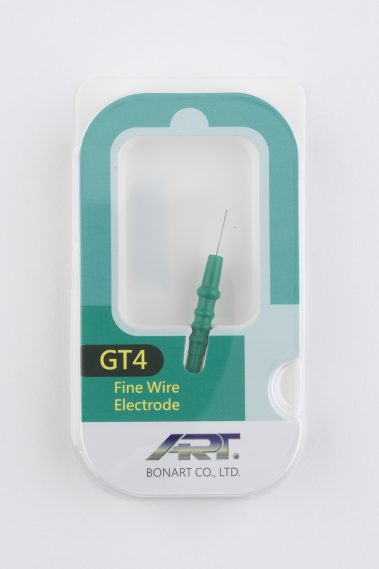

    • TE0001-482: GT4 Fine Wire Electrode

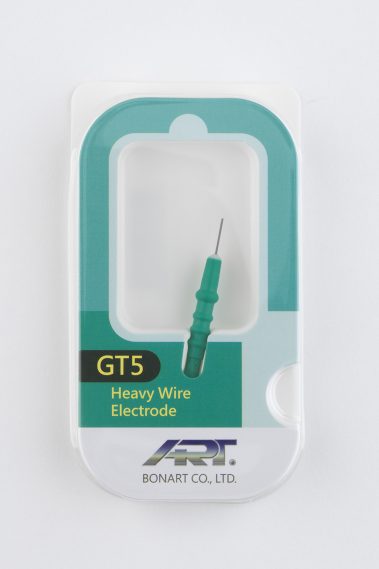

    • TE0001-492: GT5 Heavy Wire Electrode

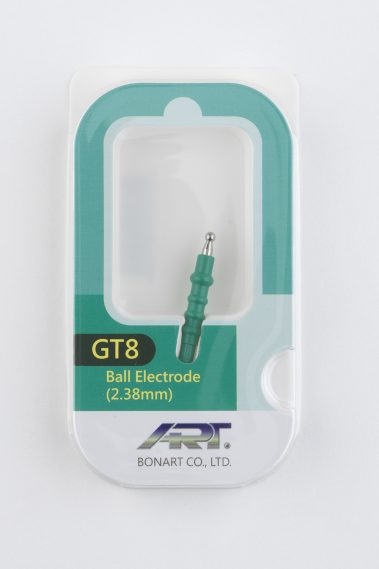

    • TE0001-502: GT8 Small Ball (2.38mm) Electrode
    • TE0001-512: GT9 Heavy ball (5mm) Electrode

A set of 7 electrodes comes pre-packaged with the purchase of the Electron. Individual electrodes can be purchased separately.

Shaft cross section diameter: 3/32"

Sold separately and does not come with the purchase of the Electron

Shaft cross section diameter: 1/16"

Sold separately and does not come with the purchase of the Electron

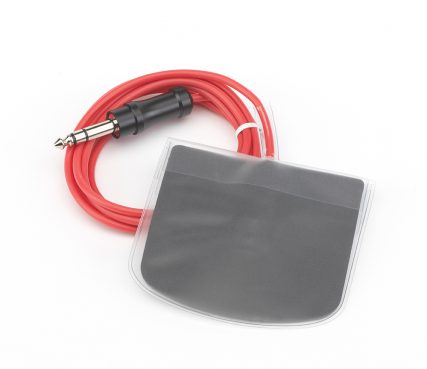

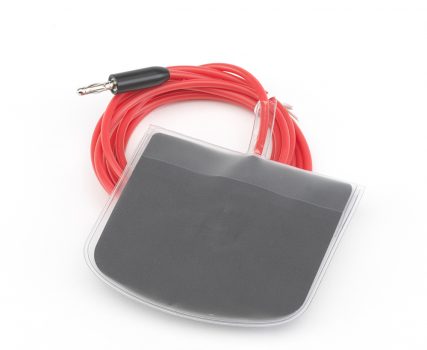

Please check your existing IND/Grounding plate plug to see if you need the small or big plug

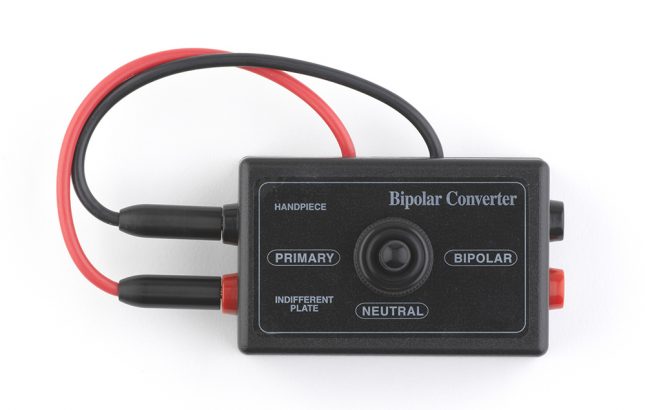

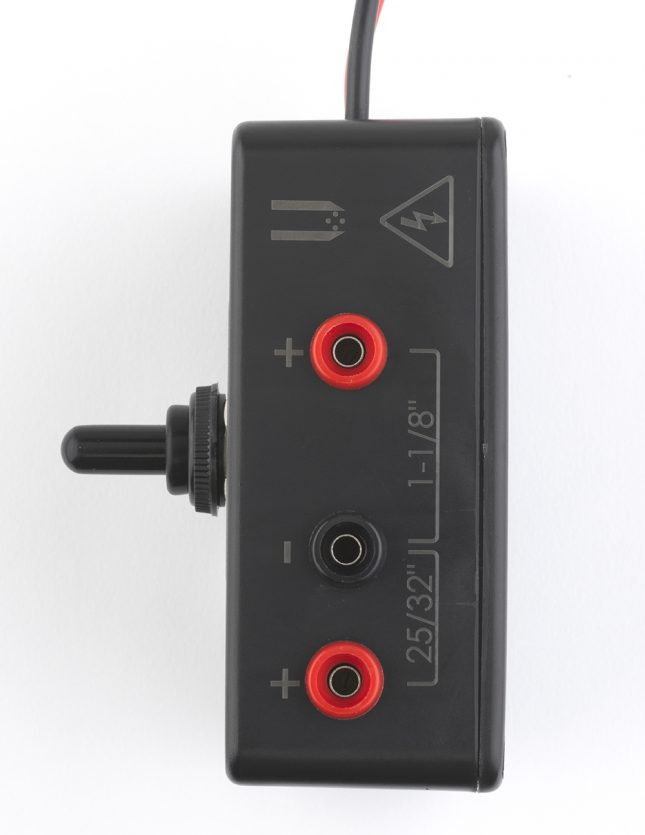

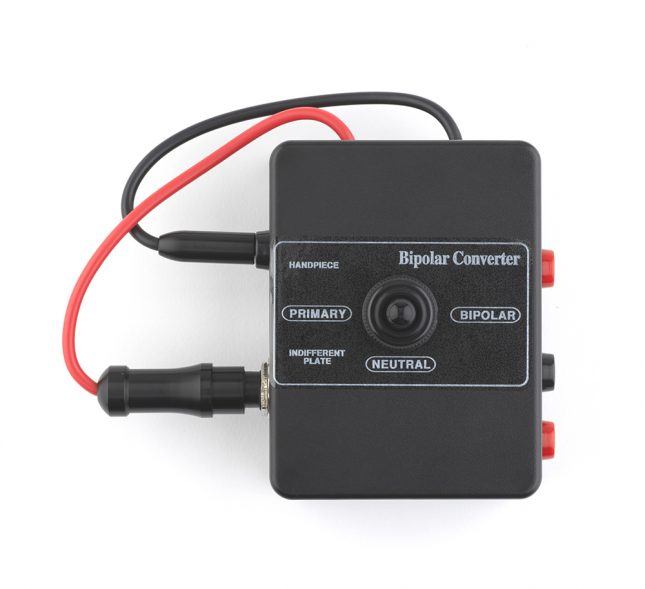

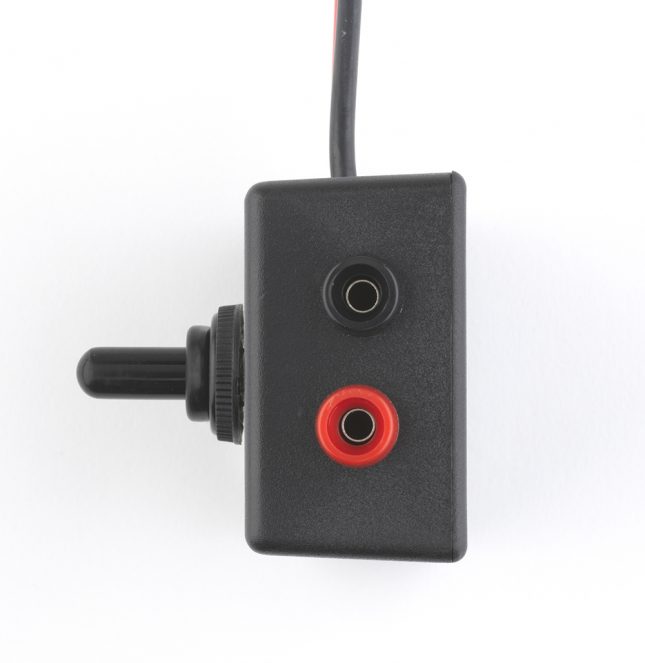

BIG PLUG BIPOLAR CONVERTERS

SMALL PLUG BIPOLAR CONVERTERS

Sold separately and does not come with the purchase of the Electron

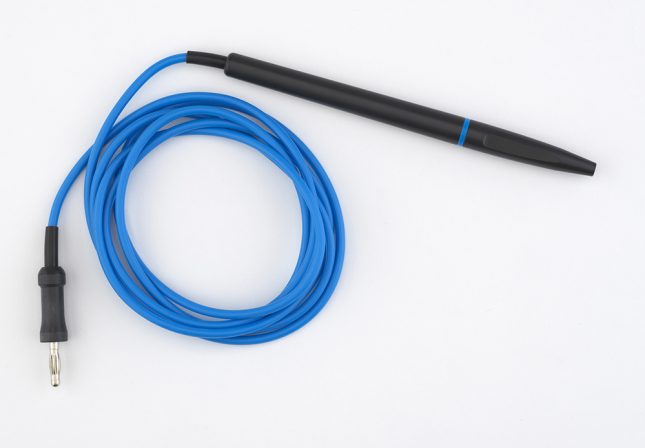

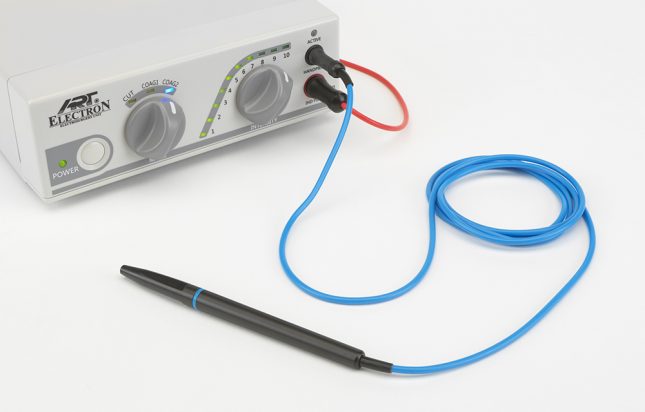

BLUE HANDPIECE FOR ELECTRON™ ELECTROSURGERY UNIT

Replacement Blue-style handpiece (w/ cable) for older-model Electron™* electrosurgery units (and regional variants). Works with Blue-style electrodes only. No assembly required. For use by licensed technicians only.

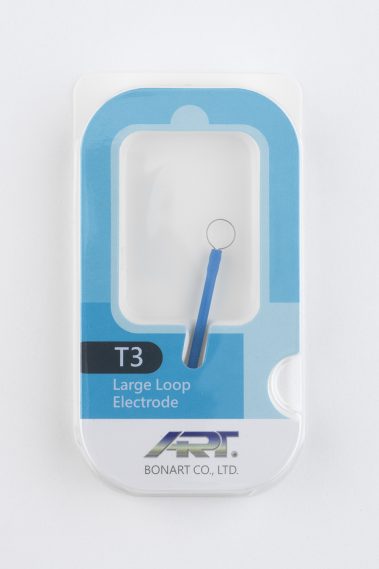

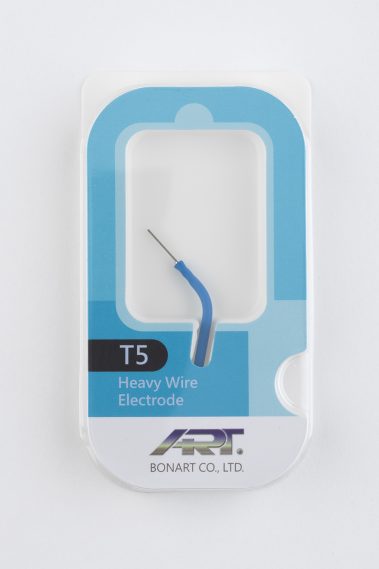

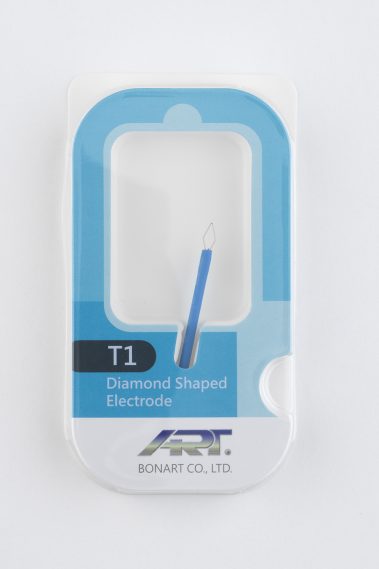

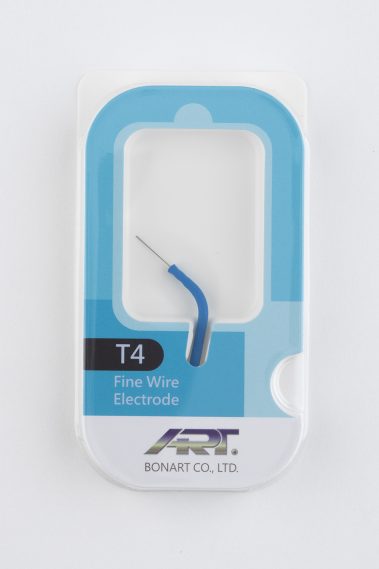

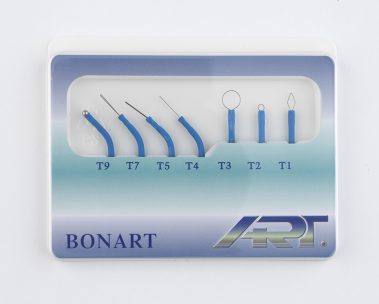

Blue electrodes require the Blue Handpiece. Sold separately.

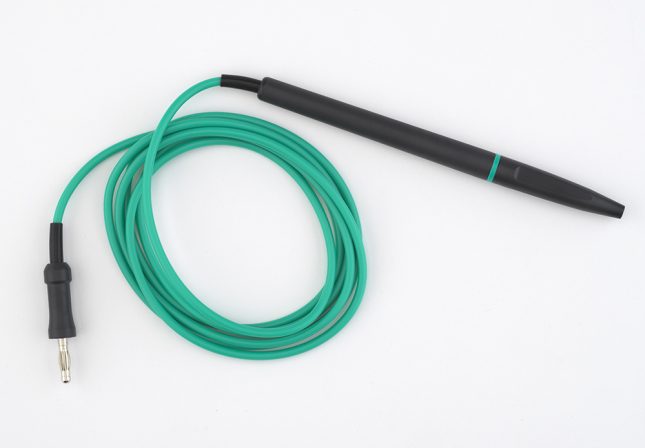

GREEN HANDPIECE FOR ELECTRON™ ELECTROSURGERY UNIT

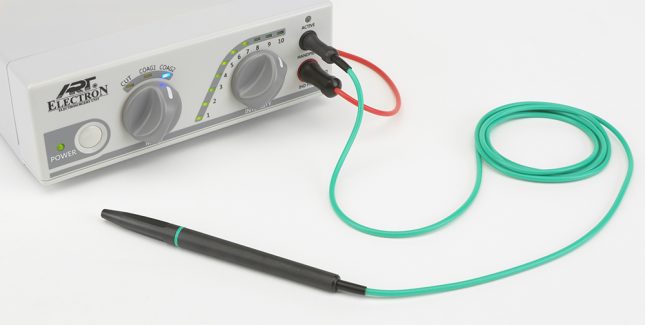

Replacement Green Tungsten handpiece (w/ cable) for Electron™* electrosurgery unit. Works with Green Tungsten electrodes only. No assembly required. Plugs directly into the handpiece socket in the Electron™ front panel. For use by licensed technicians only.

Green electrodes require the Green Handpiece. Sold separately.

Sold separately and does not come with the purchase of the Electron
Please note:
  Small plug IND plate and big plug IND plate are NOT interchangeable, please check your existing plug size to see which one you need.
